Modular Horizontal Slab Formwork Components
Explore our integrated, structurally rated slab shoring catalog. Built with 6061-T6 aluminum and heavy-duty galvanized structural steel.

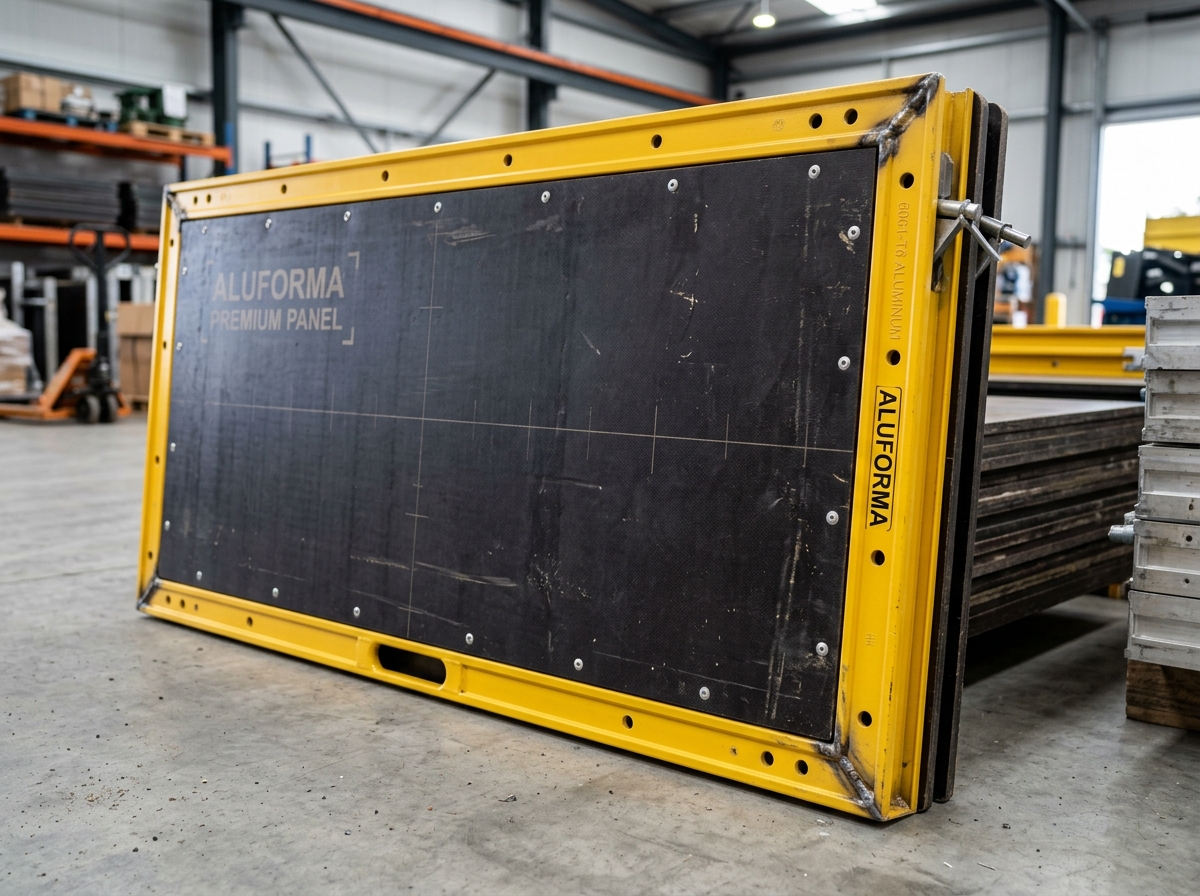

Aluminum Slab Formwork Panels
Lightweight handset panel systems engineered for high-cycle horizontal concrete forming without cranes.
Slab Formwork Beams
Heavy-bending aluminum and wood-composite H20 beams configured for flexible horizontal deck layout structures.
Dropheads & Prop Heads
The quick-release drophead mechanisms that allow horizontal panels to be cycled safely while shoring stays in place.

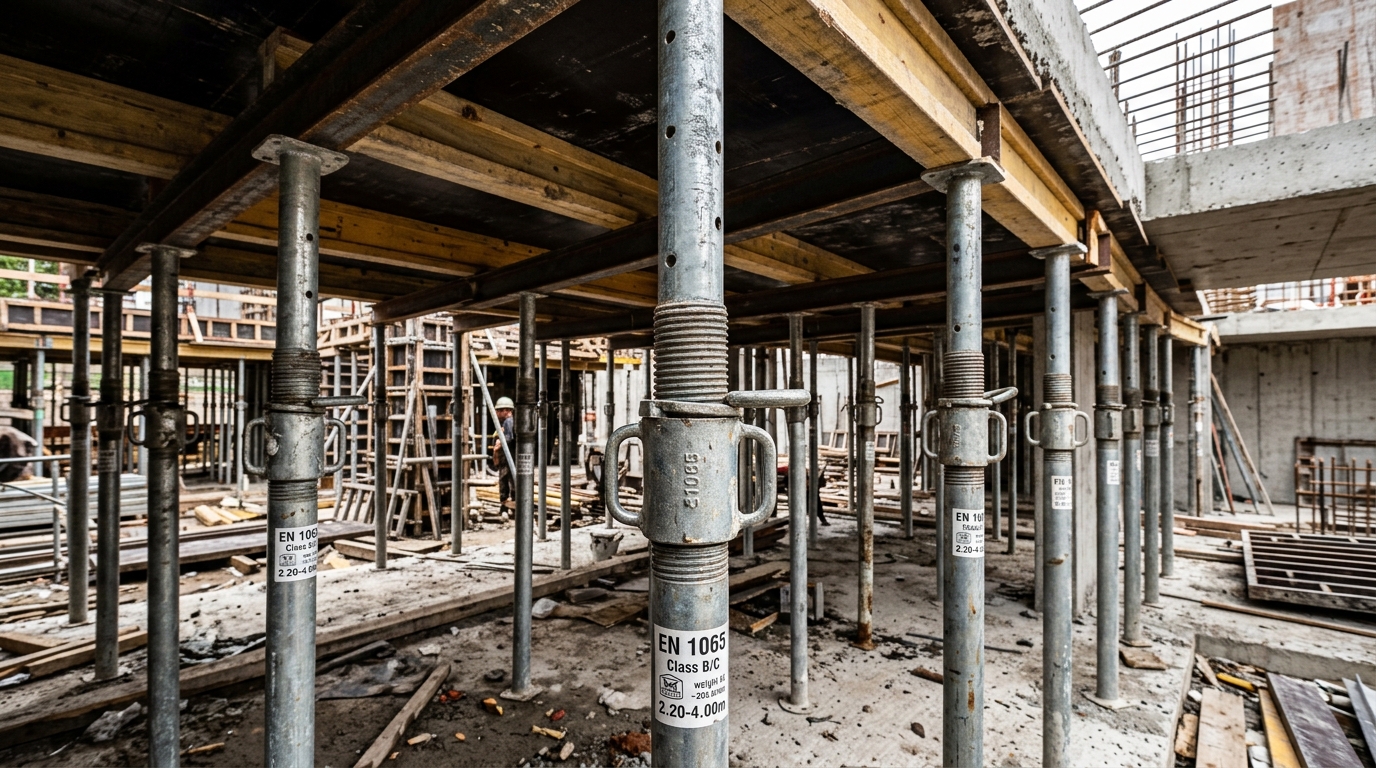

Shoring Props
Certified telescopic props in steel and aluminum, conforming to EN 1065 Class D/E loading profiles.
Edge Protection Systems
EN 13374 Class A compliant perimeter edge clamps, guardrail posts, and protective steel mesh barriers.
Wall Accessories
Connectors, column wrap clamps, and alignment alignment jacks that interface vertical forms with concrete slabs.
Ties & Hardware
High-tensile Dywidag tie bars, cast-iron wing nuts, water stops, and cast-in anchoring fixtures.
Shoring Components & Jobsite Assemblies
Inspect our premium grade aluminum form work panels and heavy-duty adjustable post shores in detail.

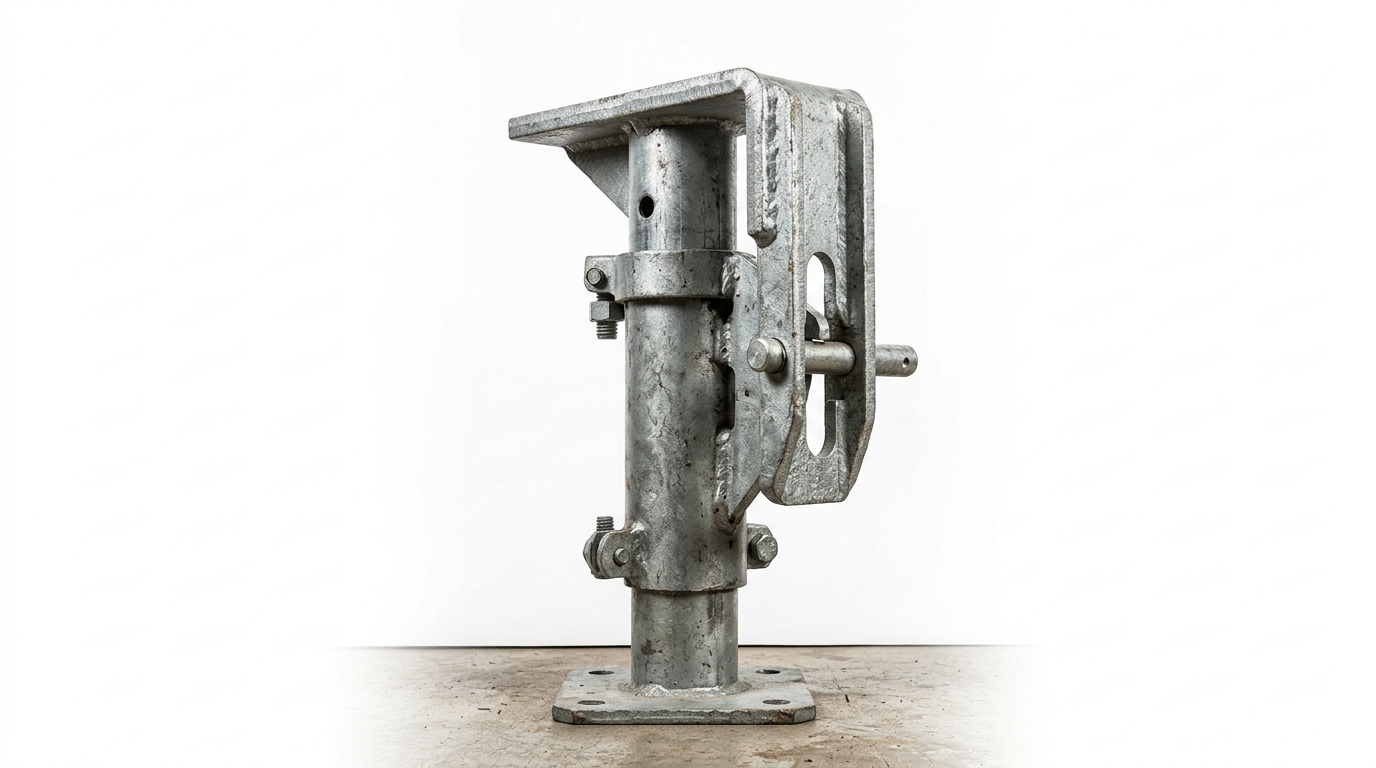

Mechanically allows frames to drop 60mm with a single blow while shoring post remains locked under stress.
Supplied with hot-dip galvanized finish and anti-drop features to guarantee worker security.
Configured for standard 8-inch deck layouts. Standardize form operations with flat, rigid plywood matrices.
System Selection Guide based on Slab Thickness
Different slab depths translate directly to distinct hydrostatic forces and gravitational loads. Below is an indicative layout map for choosing core components:
| Slab Thickness Range | Prop Spacing Pattern | Primary Beam Type | Recommended Panel System |
|---|---|---|---|
| 4" to 8" (Residential / Multi-family) | 4.5ft x 5.0ft Grid | Alu-Beam 140 or H20 Wood | Alu-Slab Handset 150/75 |
| 8" to 14" (Commercial Floor Slabs) | 4.0ft x 4.0ft Grid | Alu-Beam 140 / Steel Beam | Alu-Slab Heavy 150/75 |

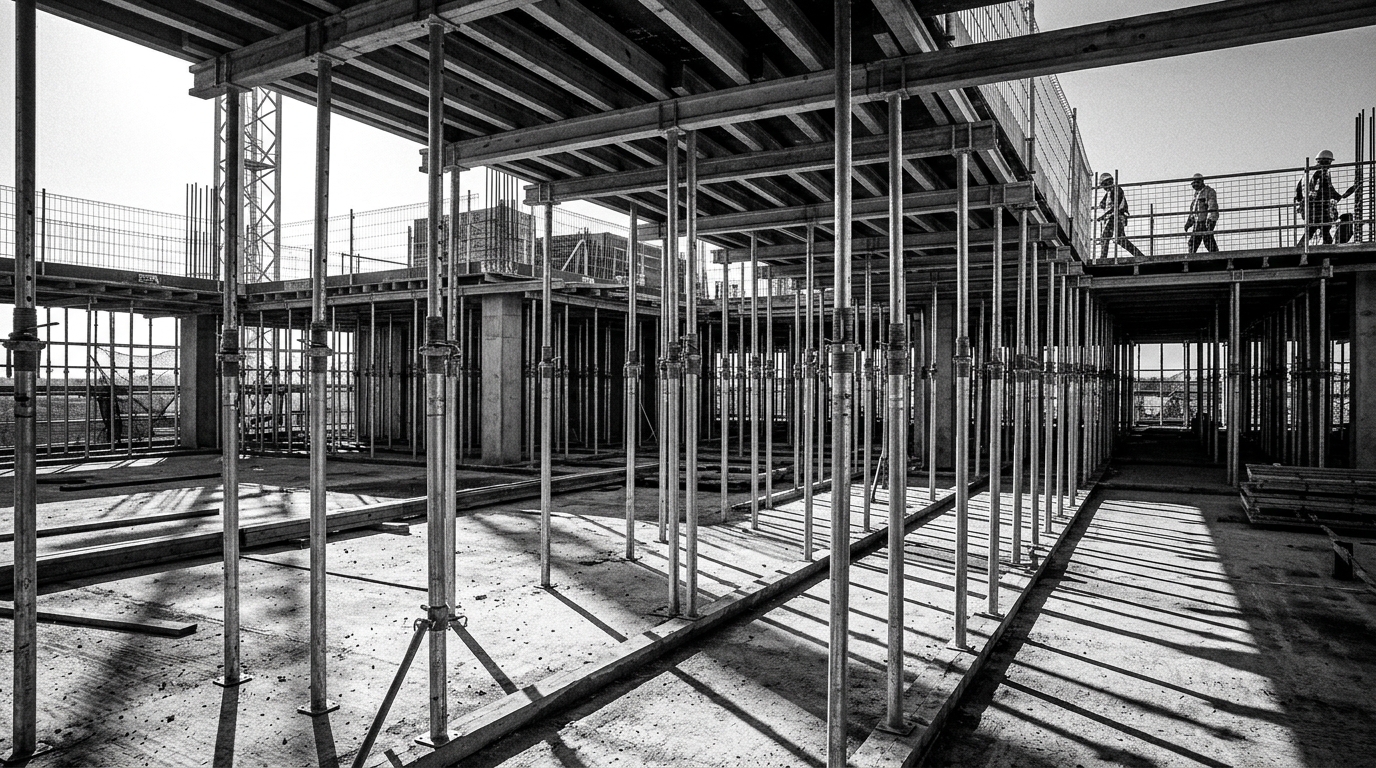

| 14" to 24" (Parking Garage & Transfer) | 3.0ft x 3.0ft Grid | High-Load Steel Decking | Steel-Grid Panel Heavy Duty |
| 24"+ (Heavy Civil / Industrial Mats) | Engineered Scaffolding Tower | Steel Beam Primary & Secondary | Structural Custom Decking Systems |
